How to activate the “image history” in the Render window

How to activate the “image history” in the Render window

By default, the “image history” is not activated after installing Quick3DPlan or Quick3DCloset. To activate it, follow these steps:

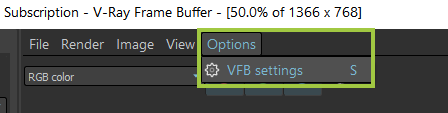

1. In the top text menu of the render window, click on the “Options -> VFB settings” option:

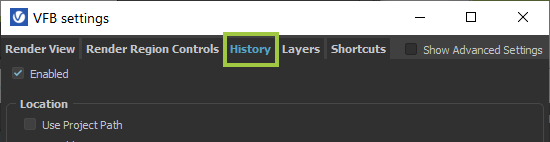

2. In the new window that appears, “VFB settings”, click on the “History” tab:

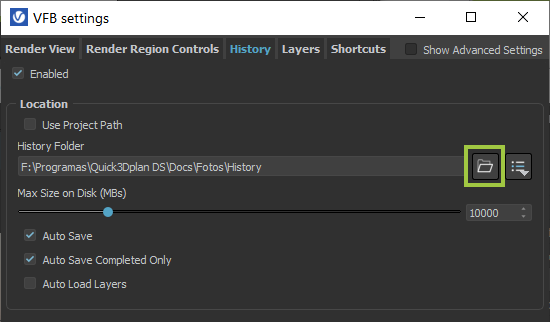

3. In the “History Folder” section, click on this button:

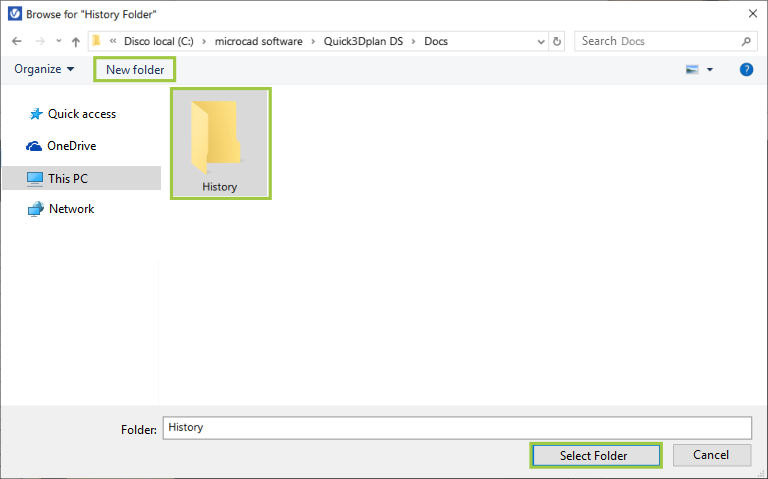

4. A Windows Explorer window will open for you to select the folder where the history photos will be saved. We recommend creating a folder named “History” inside “C:\Quick3DPlan DS\Docs” (or “C:\Quick3DCloset\Docs”), and then click the “Select Folder” button:

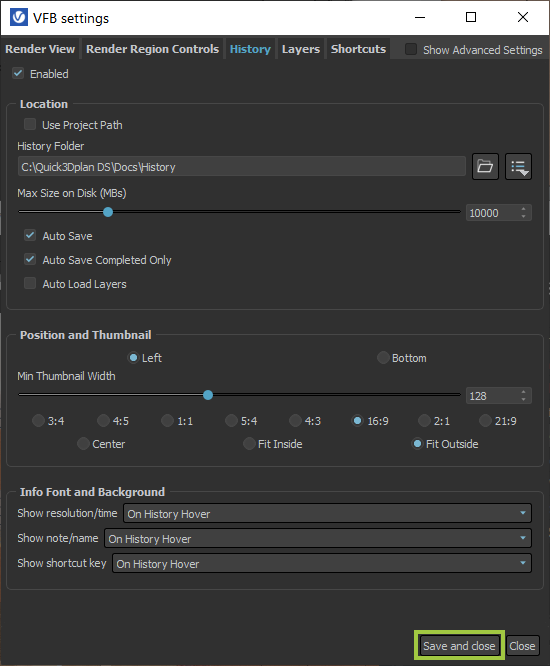

5. Finally, click on the “Save and close” button at the bottom of the window to apply the changes:



6. From that moment on, all the renders you create will appear in the history on the left side of the Render window.
